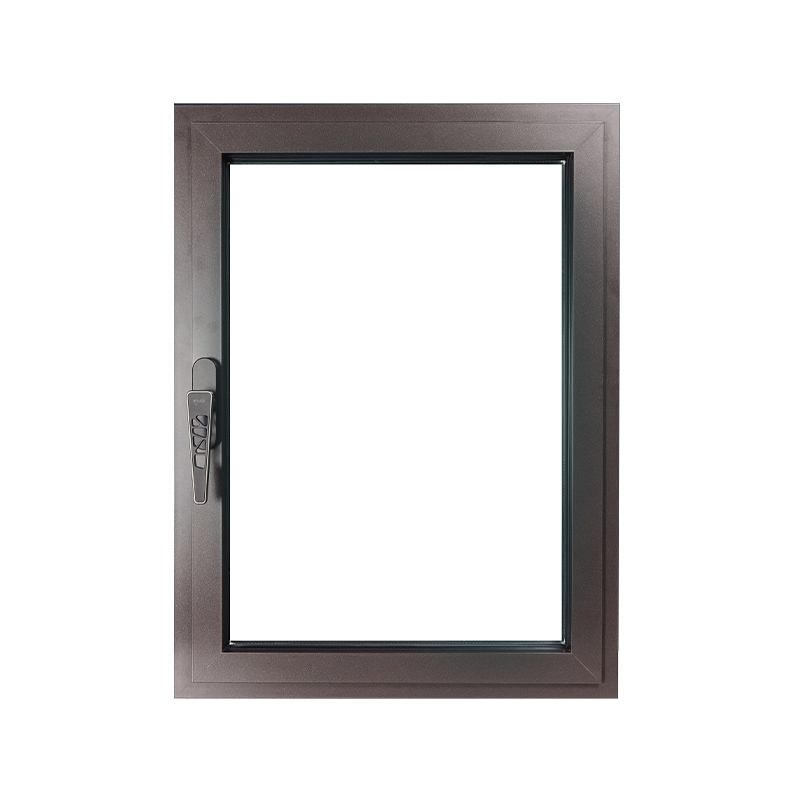

Low Energy Consumption Inward Opening Window Screen Integrated System GU01-90

GU01-90
Including screen
Sash frame
Classic side row
Closed pressure line


Performance data PERFORMANCE (national inspection report available) Watertight performance National standard level 6 (national standard highest level 6) Airtight performance National standard level 8 (national standard highest level 8) Wind resistance National standard level 9 (national standard highest level 9) Sound insulation performance 30 -42dB (depending on glass configuration) Thermal insulation performance 1.7-1.2 W/m²k (depending on glass selection) Anti-theft coefficient high Profile configuration Ultra-high-precision 6060-T66 aluminum, profile wall thickness 1.8mm, local wall thickness 3.0 Surface treatment Environmentally friendly powder spraying (vertical); imported weather-resistant metal powder Energy-saving configuration National standard PA66 grille multi-cavity insulation strip; frame insulation strip: 55mm, fan insulation strip: 35mm Sealing Configuration EPDM building sealant strips for the entire window (including inner and outer glass sealant strips, fixed window water retaining strips); two-component sealant for the entire window corners Hardware Configuration Master series handle, durable safety hinge, single leaf load-bearing 100kg How to open 90° concealed inward opening and tilting/180° concealed inward opening and tilting; glass fan and screen fan double inward opening Glass Configuration 5G(Low-E)+16Ar+5G(warm edge strip, Low-E glass, argon filled, Xinyi/Taiwan Glass original glass)

Get the latest price? We will respond as soon as possible (within 12 hours)

Performance data PERFORMANCE (national inspection report available)
Watertight performance	National standard level 6 (national standard highest level 6)
Airtight performance	National standard level 8 (national standard highest level 8)
Wind resistance	National standard level 9 (national standard highest level 9)
Sound insulation performance	30 -42dB (depending on glass configuration)
Thermal insulation performance	1.7-1.2 W/m²k (depending on glass selection)
Anti-theft coefficient	high
Profile configuration	Ultra-high-precision 6060-T66 aluminum, profile wall thickness 1.8mm, local wall thickness 3.0
Surface treatment	Environmentally friendly powder spraying (vertical); imported weather-resistant metal powder
Energy-saving configuration	National standard PA66 grille multi-cavity insulation strip; frame insulation strip: 55mm, fan insulation strip: 35mm
Sealing Configuration	EPDM building sealant strips for the entire window (including inner and outer glass sealant strips, fixed window water retaining strips); two-component sealant for the entire window corners
Hardware Configuration	Master series handle, durable safety hinge, single leaf load-bearing 100kg

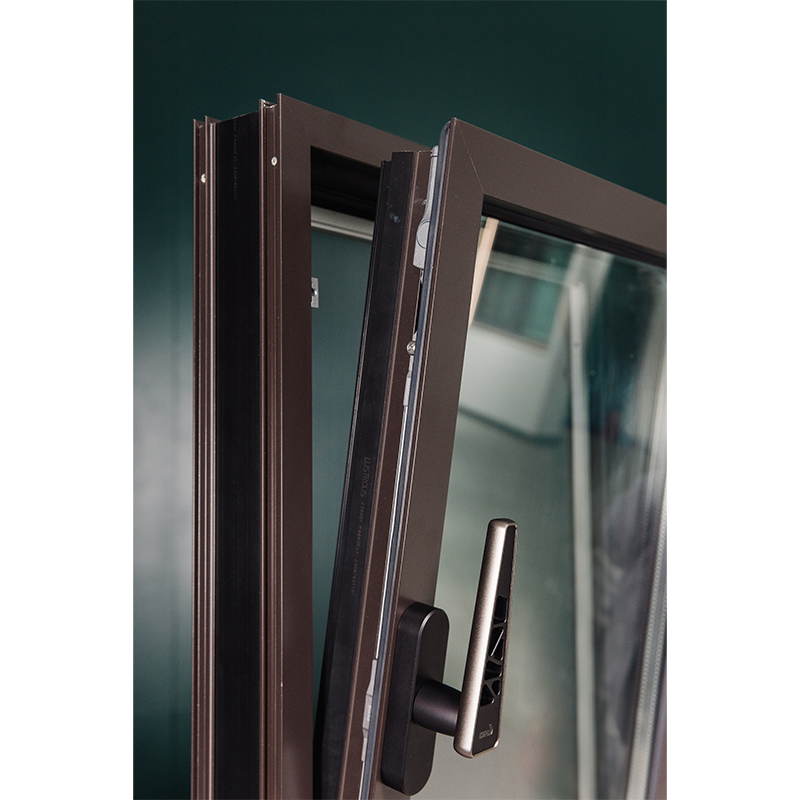

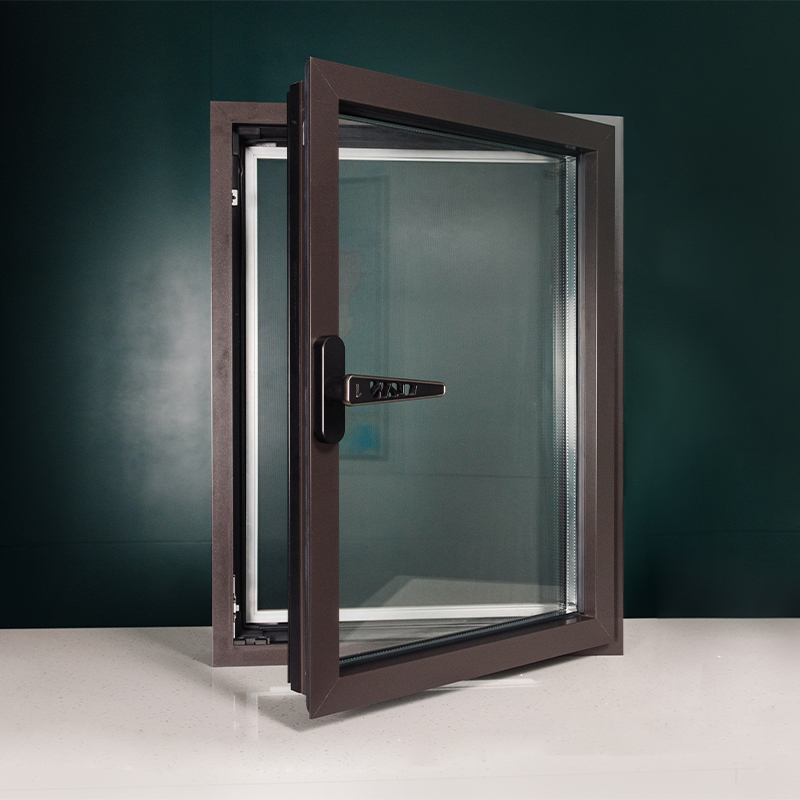

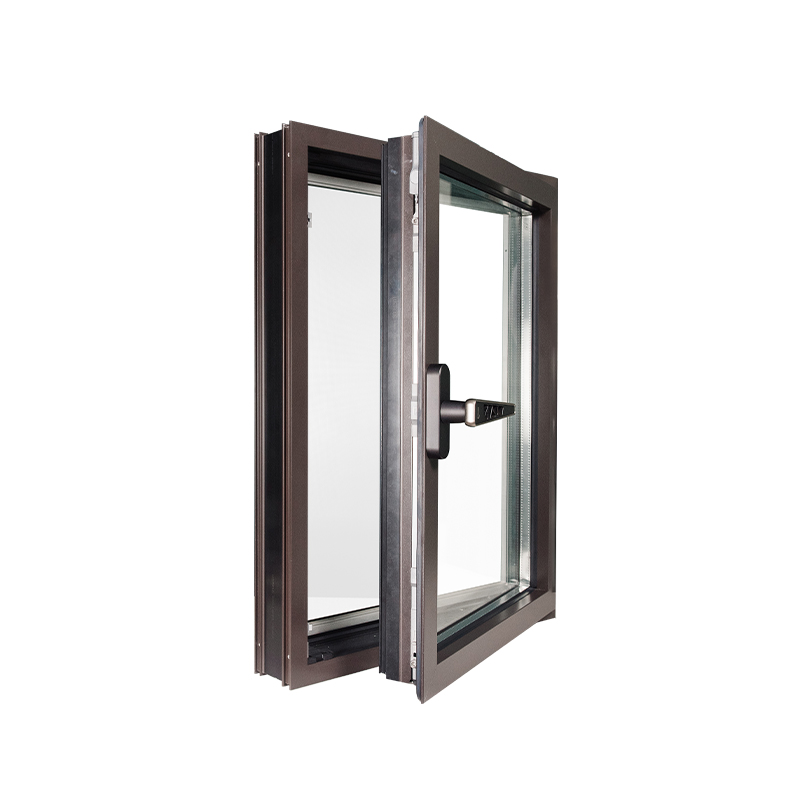

How to open	90° concealed inward opening and tilting/180° concealed inward opening and tilting; glass fan and screen fan double inward opening
Glass Configuration	5G(Low-E)+16Ar+5G(warm edge strip, Low-E glass, argon filled, Xinyi/Taiwan Glass original glass)
