Performance data PERFORMANCE (national inspection report available) |
Watertight performance | National standard level 6 (national standard highest level 6) |
Airtight performance | National standard level 8 (national standard highest level 8) |
Wind resistance | National standard level 9 (national standard highest level 9) |
Sound insulation performance | 30 -42dB (depending on glass configuration) |
Thermal insulation performance | 2.0 -1.5W/m²k (depending on glass selection) |
Anti-theft coefficient | high |

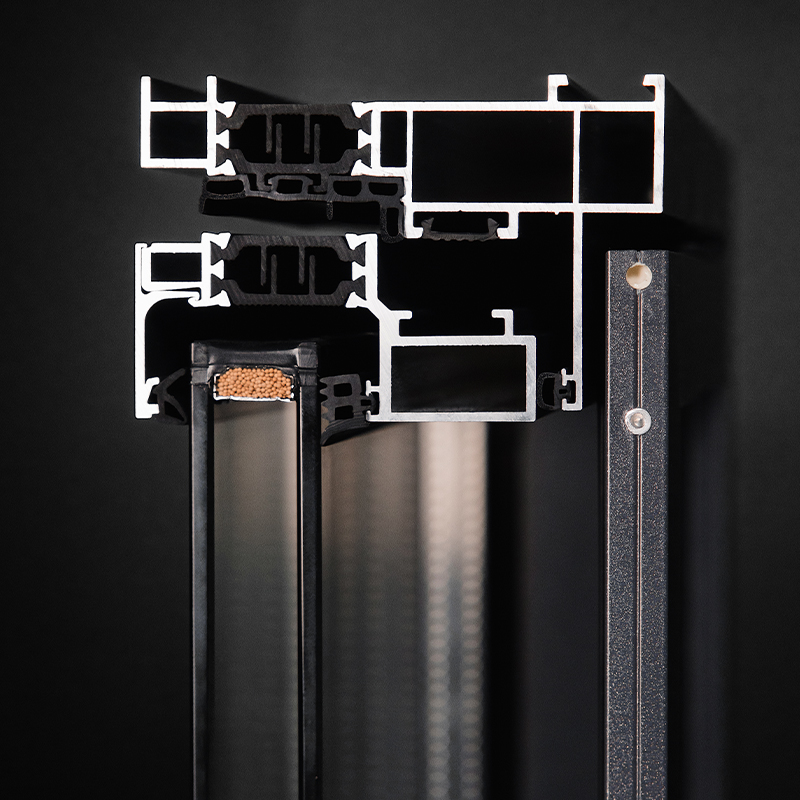

Profile configuration | Ultra-high-precision 6060-T66 aluminum, profile wall thickness 1.8mm |
Surface treatment | Environmentally friendly powder spraying (vertical); imported weather-resistant metal powder |
Energy-saving configuration | National standard PA66 grille multi-cavity insulation strip; frame insulation strip: 30mm, fan insulation strip: 30mm |
Sealing Configuration | EPDM building sealant strips for the entire window (including inner and outer glass sealant strips, fixed window water retaining strips); two-component sealant for the entire window corners |

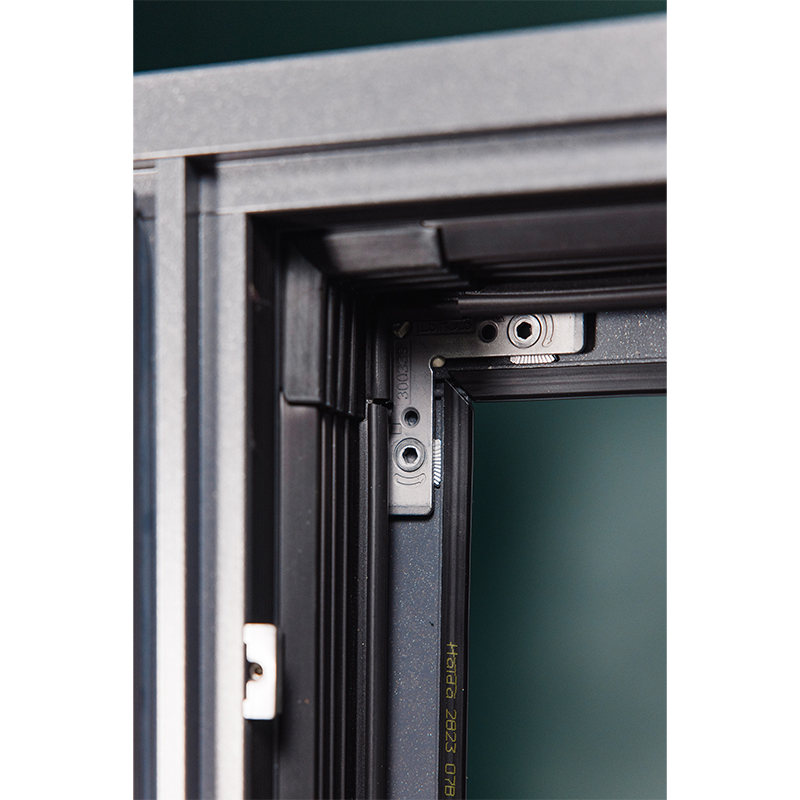

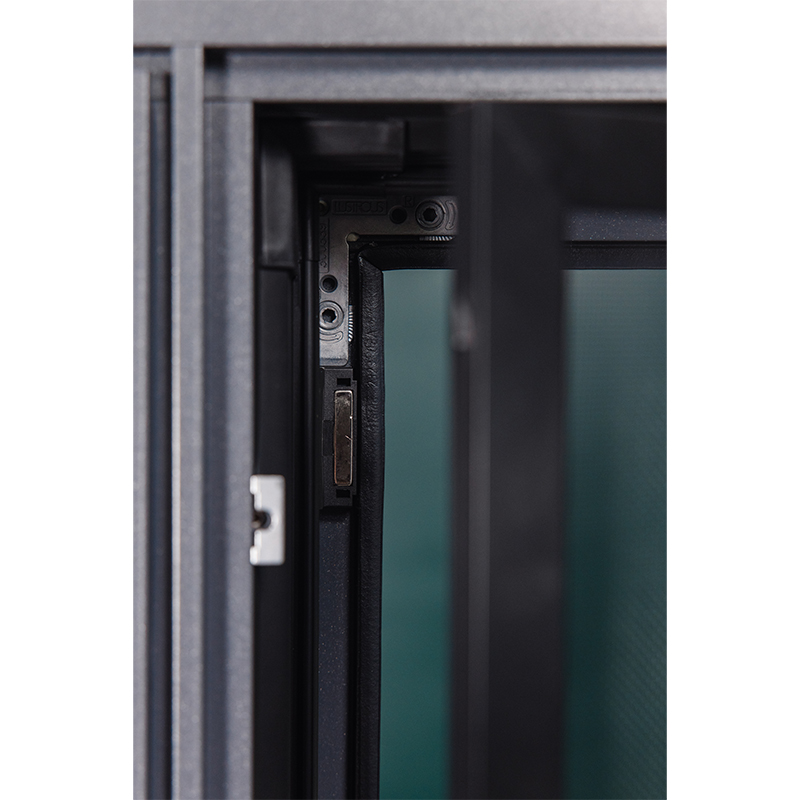

Hardware Configuration | Side mounted hidden handle, durable safety friction hinge, single leaf load-bearing 80kg |
How to open | Concealed external casement opening/Concealed external top-hung opening |
Glass Configuration | 5G(Low-E)+16Ar+5G(warm edge strip, Low-E glass, argon filled, Xinyi/Taiwan Glass original glass) |
