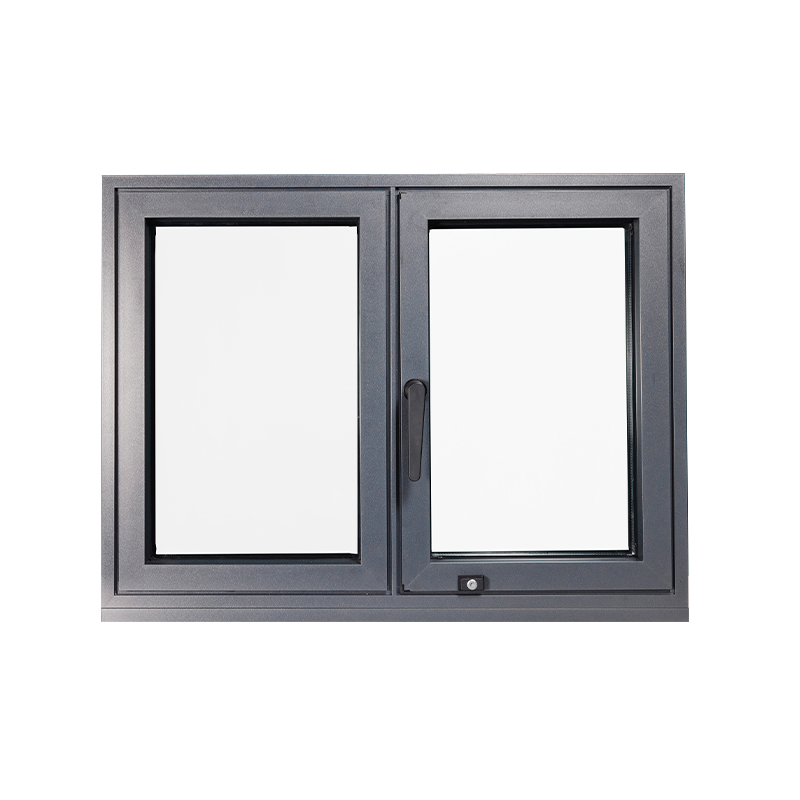

Low Energy Consumption Outward Opening Window Screen Integrated System

Performance data PERFORMANCE (national inspection report available)

Watertight performance

National standard level 6 (national standard highest level 6)

Airtight performance

National standard level 8 (national standard highest level 8)

 Wind resistance

National standard level 9 (national standard highest level 9)

Sound insulation performance

30 -42dB (depending on glass configuration)

Thermal insulation performance

2.0-1.5W/m²k (depending on glass selection)

Anti-theft coefficient

high

Profile configuration

Ultra-high-precision 6060-T66 aluminum, profile wall thickness 1.8mm

Surface treatment

Environmentally friendly powder spraying (vertical); imported weather-resistant metal powder

Energy-saving configuration

National standard PA66 grille multi-cavity insulation strip; frame insulation strip: 45mm, fan insulation strip: 30mm

Sealing Configuration

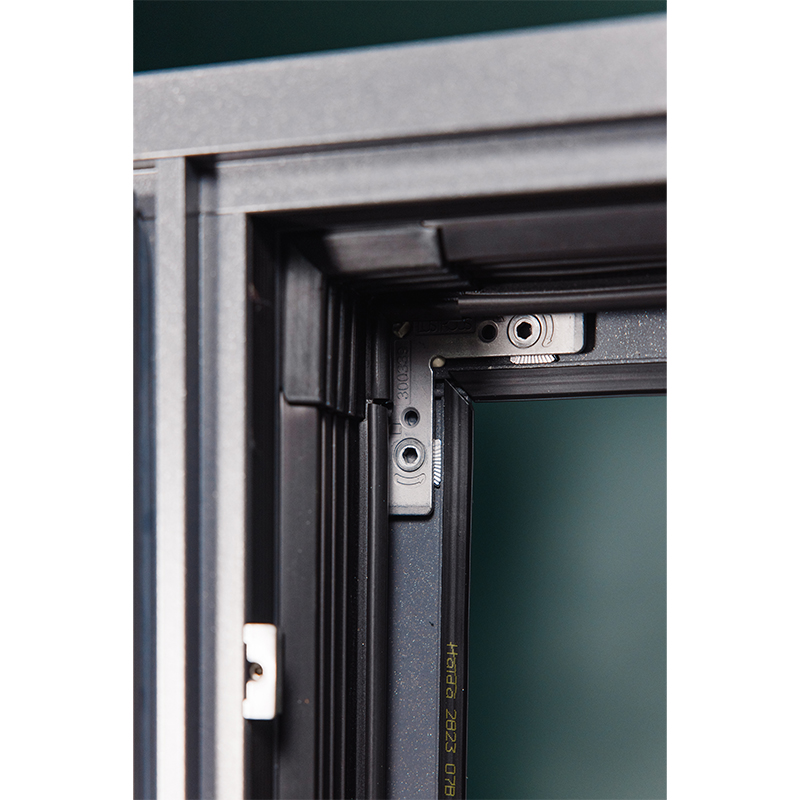

EPDM building sealant strips for the entire window (including inner and outer glass sealant strips, fixed window water retaining strips); two-component sealant for the entire window corners

Hardware Configuration

Side mounted hidden handle, durable safety friction hinge, single leaf load-bearing 80kg

How to open

:Hidden external casement opening/hidden external top hanging opening; glass sash opens outwards, screen sash opens inwards

Glass Configuration

5G(Low-E)+16Ar+5G(warm edge strip, Low-E glass, argon filled, Xinyi/Taiwan Glass original glass)
